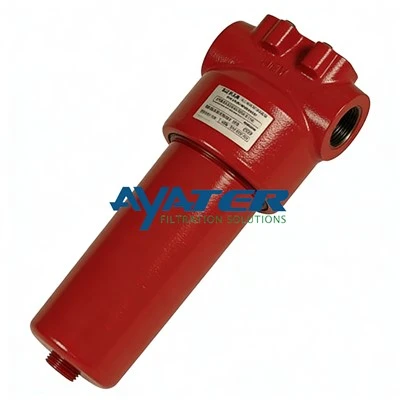

Kev kov yeej qhov chaw nyob sab nraud nrog Ayater MF 190 rov qab kab lim. Ua nrog tshwj xeeb los tiv thaiv- coatings coatings thiab siab -collapse media, nws muab unwavering kua purity rau marine winches, steering gears, thiab hnyav-duty synthetic hydraulic networks.
Kev lag luam maritime thiab offshore roj thiab roj tau nthuav tawm qhov kev sim siab kawg rau cov khoom siv hydraulic. Kev tsis tu ncua ntawm cov tshuaj tsuag dej ntsev, cov av noo heev, thiab cov hluav taws xob UV tawg tuaj yeem ua rau cov cuab yeej siv tau sai sai. Ayater MF 190 rov qab kab lim yog tshwj xeeb tsim kom muaj kev vam meej hauv cov xwm txheej phem no. Tsim los rau siab -dej marine daim ntaub ntawv mus txog 190 litres ib feeb, qhov kev sib dhos lim dej no yog qhov kev xaiv zoo tshaj plaws rau kev tiv thaiv cov hydraulic circuits ntawm thauj tog rau nkoj winches, lawj cranes, thiab nkoj steering iav. Los ntawm kev ua kom cov kua dej huv huv, MF 190 tau lees tias cov haujlwm tseem ceeb hauv hiav txwv tseem muaj kev cuam tshuam thiab txhim khu kev qha thaum koj nyob ntau pua mais ntawm qhov chaw nres nkoj ze tshaj plaws.
Txhawm rau tiv thaiv qhov kev hem thawj tsis tu ncua ntawm galvanic corrosion thiab xeb, lub tsev sab nrauv ntawm Ayater MF 190 tau dhau los ua ntau yam - theem txheej txheem kho saum npoo. Lub hnyav- lub luag haujlwm steel lub tais thiab cam khwb cia hlau taub hau yog thawj zaug abrasive- blasted rau cov hlau dawb, ua raws li kev thov ntawm marine- qib zinc- nplua nuj epoxy primer. Cov txheej txheem kawg yog ib lub tsho polyurethane uas muaj zog heev uas muab cov khoom tiv thaiv tsis muaj zog tiv thaiv ntsev pos huab thiab tshuaj lom neeg raug. Cov txheej txheem txheej txheem txheej txheem no ua kom ntseeg tau tias cov txheej txheem kev ncaj ncees ntawm cov vaj tsev lim dej tseem tsis muaj kev cuam tshuam, txawm tias tom qab xyoo ntawm kev xa mus rau ntawm ntug dej hiav txwv rigs lossis cov nkoj lag luam.
Marine hydraulic systems feem ntau ntsib tam sim ntawd, huab cua hloov pauv vim muaj dej hiav txwv ntxhib thiab ua haujlwm nqa hnyav. Cov ntsiab lus lim hauv MF 190 yog tsim los nrog lub siab - tsoo lub zog architecture. Cov khoom hluavtaws micro- iav xov xwm yog sandwiched ntawm ob txheej ntawm hnyav-lub luag haujlwm, epoxy-coated stainless hlau mesh. Qhov kev tsim kho ruaj khov no tiv thaiv cov lim pleats los ntawm distorting los yog rupturing thaum lub sij hawm ua nruj nreem surges los yog thaum cov kua yog viscos heev thaum lub sij hawm txias dej hiav txwv ua hauj lwm. Qhov no tau lees paub tias cov khoom paug tsis raug tso tawm rov qab mus rau sab huv ntawm lub hydraulic reservoir.
Kev ua raws li ib puag ncig yog qhov tseem ceeb tshaj plaws hauv kev ua dej hiav txwv niaj hnub no, nrog cov kev cai nruj xws li Vessel General Permit (VGP) tswj cov dej tawm. Ayater MF 190 tau ua tiav nrog Environmentally Acceptable Lubricants (EALs), suav nrog hluavtaws esters (HEES) thiab polyglycols (HEPG). Los ntawm kev muab cov lim sib dhos nrog tshwj xeeb FKM (Viton) elastomer seals, nws muab cov pa tawm - ua haujlwm pub dawb txawm tias thaum ua cov dej ntxhia, biodegradable. Los ntawm kev tswj hwm qhov huv ntawm EALs, MF 190 txuas ntxiv lub neej ntawm cov dej, txo qhov kev pheej hmoo ntawm kev puas tsuaj ib puag ncig, thiab ua kom koj lub nkoj tseem ua raws li kev cai lij choj thoob ntiaj teb maritime.
| Parameter | Specification Paub meej |
| Max ua haujlwm siab | 10 bar (145 psi) |
| Flow Rate Limit | 190L / min (50.1 GPM) |
| Kev kho saum npoo | Marine-qib Epoxy/Polyurethane Txheej |
| Micron Ratings Muaj | 3, 5, 10, 20 µm (tsis muaj) |
| Bypass Valve Qhib | 3 bar (43.5 psi) |
| Threaded Connections | G 1 1/2" or SAE-24 |
| Environmental Temp Range | -20℃rau +120 degree |
| Kev xaiv cov khoom siv foob | FKM (Viton) rau EAL compatibility |
| Element Support | Stainless hlau sab hauv / sab nrauv mesh |
Cov qauv zoo sib xws
Xyuas kom koj lub nkoj tag nrho lossis ntug dej hiav txwv muaj kev tiv thaiv nrog Ayater's marine - qib pom tshuab. Rau cov kev xav tau sib txawv thoob plaws koj cov dej hiav txwv hydraulic, thov hu rau peb kom xaj cov kev cuam tshuam txog corrosion{2}}cov qauv tiv thaiv:
MF 160 (Txog 160 L / min)
MF 180 (Txog 180L / min)
MF 280 (Txog 280 L / min)
