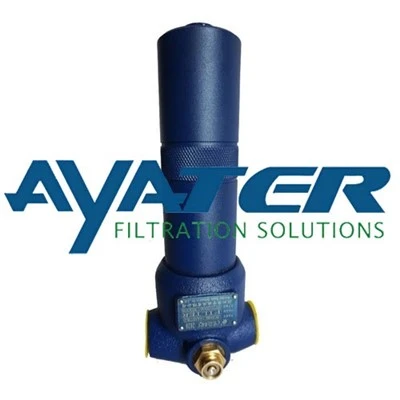

Boasts advanced lim media, 350-bar siab tsis kam, thiab dual- foob tsim, xa cov kev ua haujlwm ruaj khov rau cov kev xav tau siab.
Ua haujlwm siab tshaj plaws:
350 bar (5075 psi)
Rated Fatigue Siab:
O-300 bar (4350 psi) ib NFPAT2.06.01R2-2001CAT C/90/*(1 lab cycles), txheeb xyuas bytesting ntawm 0-353 bar (5120 psi) rau 1 lab cycles.
Hu rau Ayater rau cov ntawv thov uas muaj kev ntxhov siab ntau dua ntawm cov voj voog qis
Hom Burst Pressure:
1050bar (15,225psi)
Kua Compatibility:
Tau tshaj tag nrho cov roj av, waterglycols, dej - roj emulsions thiab feem ntau hluavtaws hydraulic thiab lubrication kua
Qhov kub thiab txias:
Fluorocarbon Seals:-29Cto120C(-20Fto 250'F)60C(140'F) siab tshaj HWC Rau dej glycol kua.
Bypass Valve Setting:
4.5 hli (65 psid)

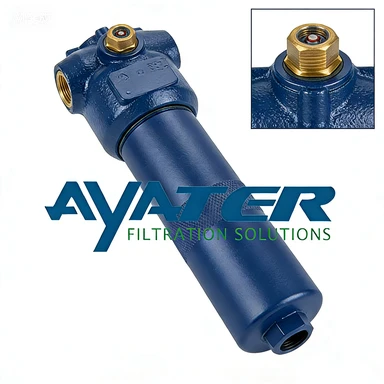

Indicator Siab Setting:
3.5 hli (50 psid)
0 Cov Khoom Siv Khoom Siv:

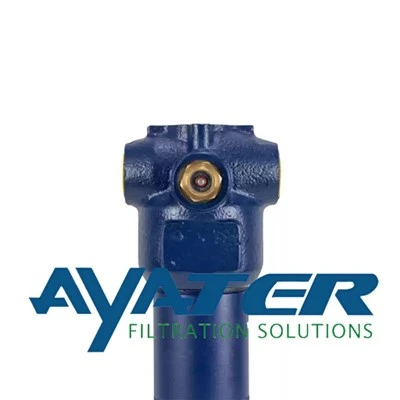

Lub taub hau: Ductile Cast Iron
Tube: carbon hlau
2.1 Siab -Lub Tsev Siab Siab
CNC-machined 6061-T6 aluminium alloy (310 MPa tensile zog) los yog GG25 cam khwb cia hlau (180-220 HB Brinell hardness) vaj tse nta 8-12mm phab ntsa thickness thiab ribbed reinforcement. Nws tau dhau 700-bar burst siab kuaj rau 30 vib nas this, kom ntseeg tau tias cov ntaub ntawv pov thawj ntawm 350-bar ua haujlwm siab (SAE J1926-1 / ISO 3724 raws). Anodized (15-20μm) los yog hmoov-coated (60-80μm) tag muab 500-teev ntsev tsuag tsis kam (ASTM B117), haum rau corrosive ib puag ncig.
2.2 Ob npaug -Kev Tiv Thaiv Kev Tiv Thaiv
Dual NBR / Viton cov ntsaws ruaj ruaj (cov duab plaub 5mm × 3mm cross-section) nrog tiv thaiv- cov nplhaib extrusion tiv thaiv deformation ntawm 350 bar. NBR seals haum -20℃~ 100 degree, thaum Viton xaiv tuav -15℃~ 150℃rau high-temperature/chemical applications. Precision-machined seal grooves (± 0.01mm kam rau ua) xyuas kom nruj haum, txwv kev xau kom tsawg dua lossis sib npaug li 0.1 mL / min @ 350 bar thiab thaiv kev sib kis sab nraud.
2.3 Tus neeg siv- Tus phooj ywg Maintenance Design
A 304 stainless hlau ceev- tso tawm clamp ua rau cov cuab yeej- tsis pub muaj vaj tse disassembly, txo cov sij hawm hloov cov cartridge kom tsawg dua lossis sib npaug li 5 mins. Kev xaiv polycarbonate pob tshab npog sab saum toj tso cai rau kev kuaj pom kev sib kis, ua kom tiav ΔP saib xyuas. Standardized 1.5-inch BSPP/SAE 16 flanges thiab saj zawg zog mounting xaiv (inline/wall/tank-mounted) simplify system kev koom ua ke. Ib qho kev xaiv 5.0-bar bypass valve tiv thaiv lub siab tshaj thaum lub sij hawm npaj txhij txog txhaws.
Core Performance Parameters
|
Parameter |
Tus nqi |
Technical Advantage |
|
Filtration Precision |
1μm-25μm (configurable) |
Targets micro-particles, tiv thaiv cov khoom hnav |
|
Lim Efficiency |
Ntau dua lossis sib npaug li 99.5% (ₓ(c) Ntau dua lossis sib npaug rau 2000, ISO 16232-10) |
Superior particle retention, thoob ntiaj teb tus qauv ua raws |
|
Flow Rate Capacity |
Mus txog 180 L / min (yeem 200 L / min) |
Haum rau loj / hnyav -cov haujlwm hydraulic |
|
Thaum Ntxov Siab |
Tsawg dua lossis sib npaug li 0.2 bar @ 180 L / min |
Tsawg zog noj, tsis muaj kev ua haujlwm poob |
|
ΔP saib xyuas qhov tseeb |
± 0.01 bar (max ntsuas ΔP: 5.0 bar) |
Precise proactive txij nkawm triggering |
|
Kev khiav hauj lwm qhov kub thiab txias |
-20℃~ 100℃(Viton: -15℃~ 150 degree) |
Adapts rau huab cua puag |
|
Vibration Resistance |
5-500Hz, 10g RMS (IEC 60068-2-6) |
Kev ua haujlwm ruaj khov hauv mobile / siab - khoom siv vibration |
