Koj puas paub tias txog li 80% ntawm tag nrho cov hydraulic system tsis ua hauj lwm ncaj qha los ntawm cov kua paug? Hauv cov ntawv thov kev lag luam niaj hnub no, qhov twg servo li qub ua haujlwm nrog microscopic clearances thiab system pressures nquag tshaj 300 bar, tus qauv tswj kev sib kis tsis txaus.
Thaum cov engineers thiab cov thawj tswj xyuas saib xyuas kom zoo dua lawv cov MRO (Kev Kho, Kho, thiab Kev Ua Haujlwm) pob nyiaj siv thiab txuas ntxiv cov cuab yeej siv lub neej, thawj feem lawv ntsuas yoghydraulic lim caij.
Kev sib cav ntau tshaj plaws hauv kev lim dej yog xaiv cov khoom pom zoo:Microglass vs. Cellulose lim media. Hauv phau ntawv qhia kev qhia no, pab pawg engineering ntawmXinxiang Saya Filters Co., Ltd (AYATER)rhuav tshem cov kev tshawb fawb tom qab ob cov ntaub ntawv no los pab koj txiav txim siab paub txog koj cov hydraulic circuits.
Cellulose lim xov xwm yog ib qho tseem ceeb heev refined muaj ntawv ua los ntawm cov ntoo pulp fibers. Tau ntau xyoo lawm, nws tau ua tus qauv rau kev lim dej yooj yim.

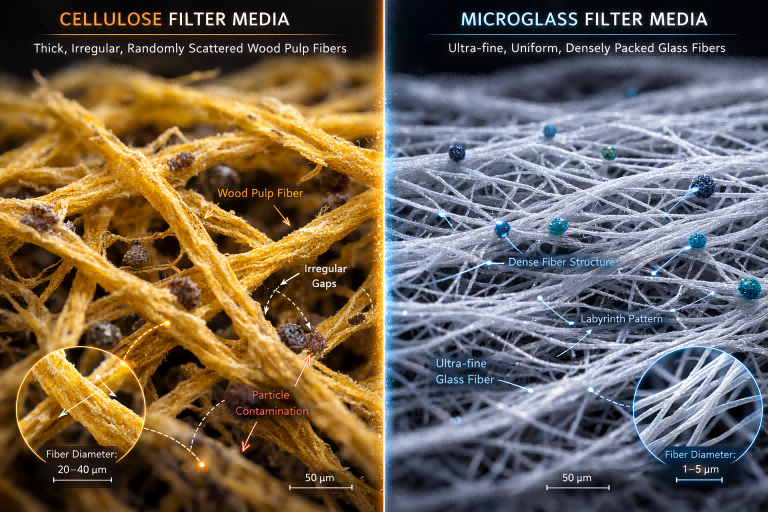

Nws ua haujlwm li cas:Cellulose cia siab raunominal lim. Vim hais tias ntoo fibers yog ib txwm tsis zoo nyob rau hauv cov duab thiab loj, lub pores nyob rau hauv lub lim ntawv yog inconsistent. Lub lim dej "10-micron" cellulose tuaj yeem ntes feem ntau 10-micron hais, tab sis cov khoom loj dua tuaj yeem plam los ntawm qhov loj dua, tsis sib xws.
Cov Drawbacks:
Kev ua haujlwm qis:Cov qauv pore tsis tu ncua ua rau qis dua Beta Ratio.

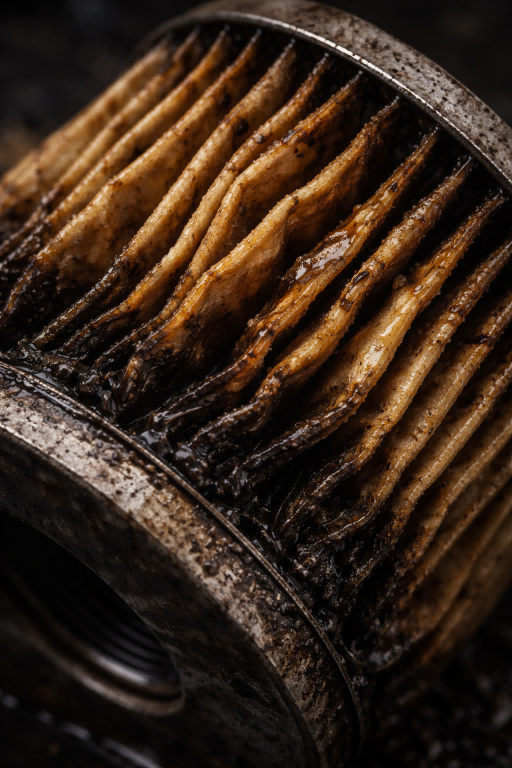

Moisture Absorption:Cellulose ib txwm nqus dej los ntawm cov kua dej hydraulic. Thaum cov fibers nqus dej, lawv o. Qhov o no txwv cov kua dej ntws tawm, ua rau lub siab poob qis (Δp) thiab ua rau lub lim mus rau hauv hom bypass ntxov ntxov.
Shorter Lifespan:Nrog qis Dirt Holding Capacity (DHC), cellulose cov ntsiab lus yuav tsum tau hloov ntau zaus.
Qhov zoo tshaj plaws rau: Tsawg- cov ntawv siv siab, cov tshuab lubrication yooj yim, lossis cov tshuab qub uas cov kua dej huv tsis yog qhov yuav tsum tau ua.
Microglass (los yog fiberglass) xov xwm sawv cev rau qhov kev vam meej hauv kev pom technology. Nws yog tsim los siv zoo kawg nkaus, inorganic iav fibers bonded ua ke nrog ib tug hluavtaws cob.
Nws ua haujlwm li cas:Microglass muabkev pom tseeb. Cov txheej txheem tsim khoom tso cai rau kev tswj xyuas meej ntawm fiber ntau thickness thiab kev faib tawm, tsim kom muaj ib qho zoo sib xws, labyrinth -zoo li pore qauv.
Qhov zoo ntawm Engineering:
Exceptional Beta Ratio:High-cov khoom microglass zoo ib txwm ua tiav qhov Beta Ratio ntawm ßx(c) Ntau dua lossis sib npaug rau 1000, txhais tau tias lawv ntes 99.9% ntawm cov khoom siv.
Maximum Dirt Holding Capacity (DHC):Vim hais tias cov iav fibers yog thinner ntau dua li ntoo fibers, muaj ntau qhov chaw qhib qhov khoob hauv xov xwm. Qhov no tso cai rau lub lim kom ntxiab thiab tuav kom muaj kev sib kis ntau dua ua ntej lub siab poob mus txog qib tseem ceeb.
Dej thiab tshuaj tiv thaiv:Inorganic iav fibers tsis nqus noo noo. Lawv tuav lawv cov qauv kev ncaj ncees txawm tias nyob rau hauv lub xub ntiag ntawm dej, kub ua hauj lwm siab, thiab aggressive synthetic fluids.
Qhov zoo tshaj plaws rau: High-siab hydraulic systems, proportional and servo valve tiv thaiv, turbine lubrication, thiab txhua daim ntawv thov yuav tsum tau siab tshaj uptime.
Txhawm rau ua qhov kev xaiv zoo tshaj plaws engineering, cia saib ntawm qhov sib piv ncaj qha matrix:
| Feature | Cellulose Media (Daim ntawv) | Microglass Media (Fiberglass) |
| Kev ntsuas ntsuas | Nominal (kwv yees) | Absolute (Precise) |
| Pore Structure | Irregular thiab random | Uniform thiab engineered |
| Dirt Holding Capacity | Tsawg rau Nruab Nrab | Siab heev(Txog 4x ntxiv) |
| Beta Ratio (Efficiency) | Tsawg (feem ntau ß <75) | Siab(Feem ntau ß Ntau dua lossis sib npaug rau 1000) |
| Dej tsis kam | Tsis zoo (Fibers swell thiab txwv tsis pub khiav) | Zoo heev(Tsis muaj o) |
| Tus nqi pib yuav khoom | qis | Siab dua |
| Tus nqi tag nrho ntawm kev muaj tswv | Siab (hloov hloov, siv lub tshuab) | qis tshaj(Long lifespan, tiv thaiv system) |
Thaum microglass kom meej meej yeej hauv kev ua tau zoo, tsis yog txhua lub microglass lim tau tsim sib npaug. Nyob rau hauv qhov sib txawv siab, cov khoom siv fiberglass tsis zoo tuaj yeem tsim kua muag lossis tawg, tso cov nthwv dej loj ntawm cov av nkag ncaj qha rau hauv koj lub tshuab hydraulic.
NtawmXinxiang Saya Filters Co., Ltd, peb tsim peb cov khoom hloov lim kom dhau OEM cov qauv. Nov yog qhov peb ua kom ntseeg tau qhov kawg:

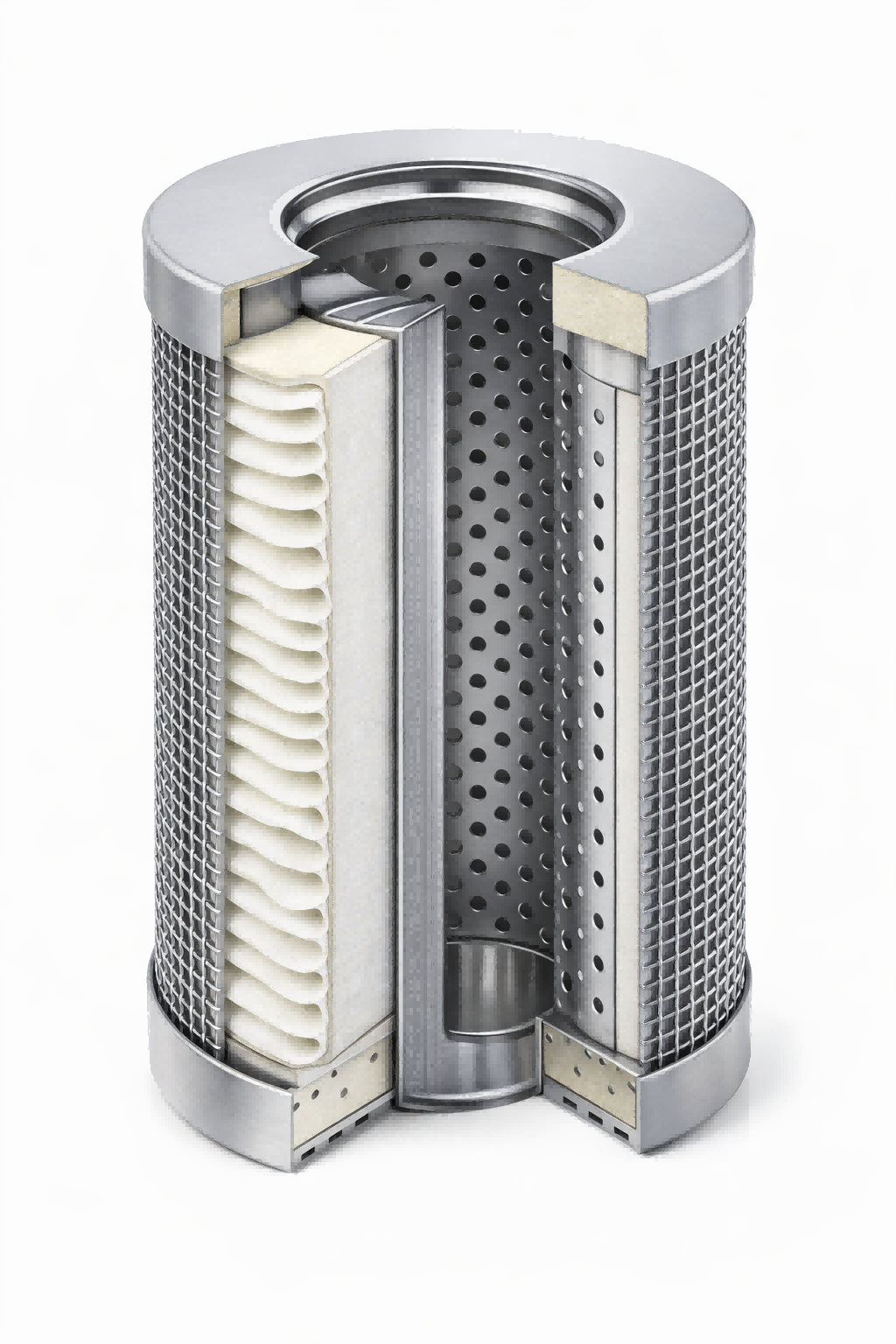

Ntau- Txheej Txheej Txheem:Peb siv txog li rau rau qhov sib txawv txheej hauv peb cov ntsiab lus pleated. Qhov no suav nrog ua ntej- cov txheej lim kom ntes cov khib nyiab loj, cov txheej txheem microglass kiag li, thiab cov txheej txheem kev txhawb nqa.
Stainless Hlau Txhawb Mesh:Peb cov microglass media yog sandwiched ntawm rugged stainless hlau los yog epoxy-coated hlau mesh. Qhov no ua kom cov pleats nyob twj ywm zoo kawg nkaus thiab tiv thaiv cov xov xwm los ntawm kev sib tsoo los yog channeling nyob rau hauv lub siab hnyav pulsations (ua raws li ISO 2941 cov qauv kev sib tsoo).
Advanced Epoxy Potting:Cov xov xwm lim dej tau sib sib zog nqus rau hauv cov kaus mom hlau kawg siv kev lag luam -qib epoxy adhesives, lav tsis muaj kua dej bypass.
Thaum cov ntxaij lim dej cellulose zoo li pheej yig dua thaum pib, cov nqi zais ntawm kev hloov pauv tsis tu ncua, kev saib xyuas kev ua haujlwm siab, thiab lub twj tso kua mis ntxov lossis lub valve hnav yuav ua rau koj cov nuj nqis MRO sai. Kev hloov kho kom siab -kev ua tau zoo microglass lim cov ntsiab lus yog tus nqi tshaj plaws - txoj hauv kev zoo kom ua tiav lub neej ntev thiab kev ntseeg siab ntawm lub tshuab tsis muaj kev cuam tshuam.
Npaj los txhim kho koj lub tshuab lim dej hydraulic?
Tsis txhob cia cov kab mob tsis zoo los tswj koj qhov kev tsim khoom. Yog tias koj tam sim no siv cov txheej txheem cellulose lim los yog them tus nqi hwm rau loj -hom OEM microglass ntsiab, peb muaj kev daws teeb meem.
Muab koj cov lej lim tam sim no rau peb, kev khiav hauj lwm siab, thiab hom kua dej. Pab pawg engineering ntawmXinxiang Saya Filters Co., Ltd (AYATER)yog npaj los muab cov kev sib tw pub dawb- siv thiab cov lus sib tw rau peb cov khoom ua tau zoo - hloov pauv.
