Khoom Piav Qhia PEXL-5-P02HAY-08L Polyester lim hnab yog tsim los ntawm polyester needlefelt cov ntaub ntawv thiab nta ib tug polyester SENTINEL sealing nplhaib, tshwj xeeb engineered rau high-temperature thiab xav tau kev siv tshuaj. Nws ntseeg tau ntes cov khoom siv mus txog 5 μm, ...
PEXL-5-P02HAY-08L Polyester lim hnabyog tsim los ntawm polyester needlefelt cov ntaub ntawv thiab nta ib tug polyester SENTINEL sealing nplhaib, tshwj xeeb engineered rausiab -kubthiabxav tau kev siv tshuaj. Nws ntseeg tau captures khoom hais mus rau5 μm, muabtsib xtuskev pabcuam lub neejntawm cov qauv lim hnab thiab ua pov thawj los txo cov nqi ua haujlwm zoo.
| Qauv | PEXL-5-P02HAY-08L |
| Khoom Series | HAYFLOW Lim Hnab |
| Catalog Number | F5873409 |
| Khoom siv | Polyester Needlefelt |
| Nominal Micron Rating | 5.0 µm |
| Dimensions (Dia. x Length) | 180mm x 700mm (Qhov Loj 02) |
| Max. Ua haujlwm kub | 150℃(302℃F) |
| Max. Tus nqi ntws | 40 m³/h |
| Max. Siab sib txawv | 2.5bar ua |
| Lim cheeb tsam | 0.7 m² |
| Kev tsim kho | Welded; Plain npog txheej; polyester SENTINEL nplhaib |
✅ Polyester needlefelt lim media-muab qhov ruaj khov thiab siab -kub tsis kam.
✅ Welded lub ntsiab qauv- nta ib txheej txheej du kom ntseeg tau tias muaj qhov sib xws thiab muaj zog txhua yam.
✅ Polyester SENTINEL sealing nplhaib - txo qis bypass.
✅ Dawb ntawm silicone thiab crater - tsim cov khoom - sib xws nrog cov txheej txheem qis qis.

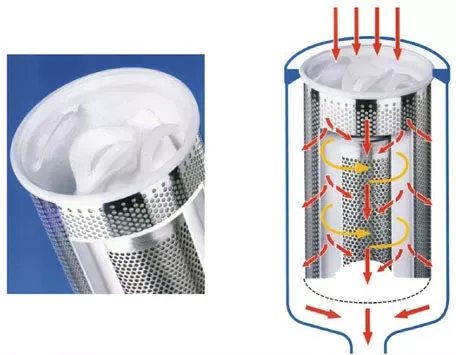

✅ Kev txhim kho sai thiab hloov tau yooj yim - cov pob tawb tshwj xeeb tuav lub hnab kom nrawm nrawm thiab hloov pauv hauv lub hnab lim tsev.
✅ Tsis tshua muaj siab poob - txo cov twj siv zog, yog li txo qis kev siv hluav taws xob.
PEXL-5-P02HAY-08L Polyester lim hnabyog haum rau:
 |
 |
 |
 |
|
PEXL-10-P01HAY-16L |
POXL-25-P01HAY-16L |
PEXL-50-PO1HAY |
POXL-100-P01HAY-16L |
|
POXL-50-P01HAY-16L |
PEXL-5-P01HAY-16L |
PEXL-25-P01HAY-16L |
POXL-1-P01HAY-16L |
|
PEXL-1-P01HAY-16L |
POXL-5-P01HAY-16L |
PEXL-100-P01HAY-16L |
POXL-10-P01HAY-16L |
