High-flow dej lim cartridge yog ua tiav los ntawm ntau yam khoom sib xyaw los ntawm cov cuab yeej tshwj xeeb, nrog cov yam ntxwv hydrophilic, nws tuaj yeem tsis tsuas yog lim tawm txhua yam impurities hauv nruab nrab, tab sis kuj los ntawm demulsification, coalescence, kom lub xeev emulsified dej yog sib cais los ntawm qhov nruab nrab, thiab coalesced mus rau hauv cov dej loj dua, thiaj li yuav pab tau rau nruab nrab ntxiv purification.

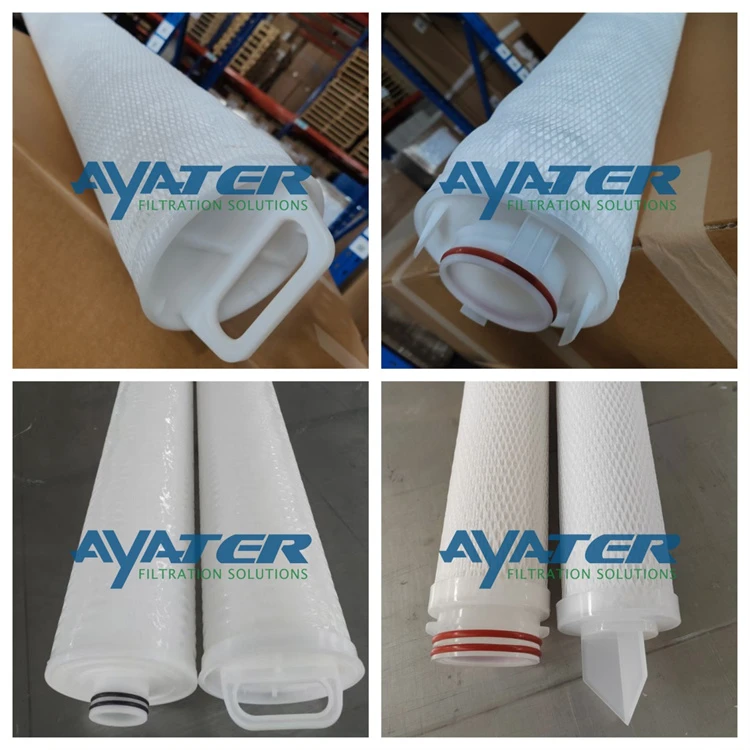

Hloov 3M siab ndlwg cartridges yog ua los ntawm sib sib zog nqus zoo polypropylene los yog iav fiber ntau membrane raws li lim xov xwm, nrog ib tug loj txoj kab uas hla ntawm 6.5 ntiv tes / 165mm, tsis muaj nruab nrab pas nrig, unidirectional qhib, lub ultra-siab txaus tus nqi tsim tso cai rau ib tug tseem ceeb txo nyob rau hauv kev siv ntawm cov cartridges thiab cov ntxaij lim dej rau tib lub ndlwg daim ntawv thov, uas ua rau kom txuag tau nyiaj ntau nyob rau hauv cov khoom siv peev nqi thiab cov nqi zog.
| Lim Media: | Polypropylene |
| Kev them nyiaj yug/kua dej: | Polypropylene (PP) |
| End Cap Khoom: | iav fiber reinforced Polypropylene (PP) |
| Khoom siv foob: | EPDM, Buna-N, Silicone |
| Ntev: | 20 "(508mm), 40" (1016mm), 60" (1524mm) |
| Sab nraud txoj kab uas hla: | 6.5 nti (165mm) |
| Sab hauv Dia: | 3 nti (76.2mm) |
| Filtration Rating: | 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 70μm,100μm |
| Max. Ua haujlwm kub: | 80 degree |
| Pom zoo DP rau kev hloov pauv: | 2.1 ~ 2.4 hli |
| Lim cheeb tsam: | 18㎡@60inch, 12㎡@40inch |
HF40PP010A01 | 70-0201-5632-2 | RTM41HF005E | 70-0201-5558-9 |
HF40PP005A01 | 70-0201-5634-8 | RTM41HF010E | 70-0201-5560-5 |
HF60PP010A01 | 70-0201-5648-8 | RTM41HF020E | 70-0201-5562-1 |
HF60PP005C01 | 770-0201-5652-0 | RTM41HF030E | 70-0201-5564-7 |
RHF010EH | 70-0201-5663-7 | RTM41HF050E | 70-0201-5566-2 |
RHF020EH | 70-0201-5667-8 | RTM41HF070E | 70-0201-5568-8 |
RHF030EH | 70-0702-5677-4 | RHF050 EH | 70-0201-5556-3 |
