Washable MDF Lim: 280 Bar Stainless Hlau Inline Assembly|Ayater

Lub tshuab lim dej lim dej no siv cov hlau tsis muaj steel hlau mesh, ua haujlwm ntawm 280 bar, nta G¾ cov chaw nres nkoj, thiab txhawb kev rov ua dua tshiab rau kev siv khoom lag luam zoo.

Xa kev nug→

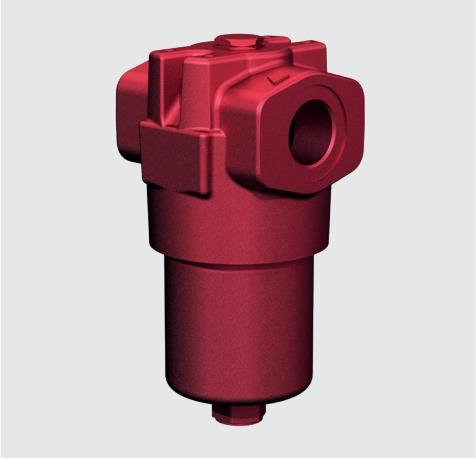

Washable MDF Lim: 280 Bar Stainless Hlau Inline Assembly|Ayater

Washable & Reusable Design

MDF W series inline lim los ua ke nta cov hlau stainless hlau mesh lim caij uas tuaj yeem ntxuav thiab rov siv tau ntau zaus, txo cov nqi khiav lag luam thiab ib puag ncig pov tseg. Nws yog tsim tshwj xeeb rau cov ntawv thov uas nquag hloov lim tsis zoo lossis raug nqi, xws li cov tshuab hnyav, hydraulic xeem lub rooj zaum, thiab lub tshuab lubrication.

Txawm hais tias nws cov qauv siv rov qab siv tau, chav tsev tswj kev ua haujlwm siab txog li 280 bar thiab muab kev tiv thaiv txhim khu kev qha tiv thaiv cov ntxhib thiab nruab nrab. Cov qauv hlau mesh muaj zog tiv thaiv kev sib tsoo thiab deformation txawm tias nyob rau hauv qhov sib txawv siab, ua kom muaj kev ruaj khov nyob hauv ntau lub voj voog tu.

Ua kom tiav Specification Data

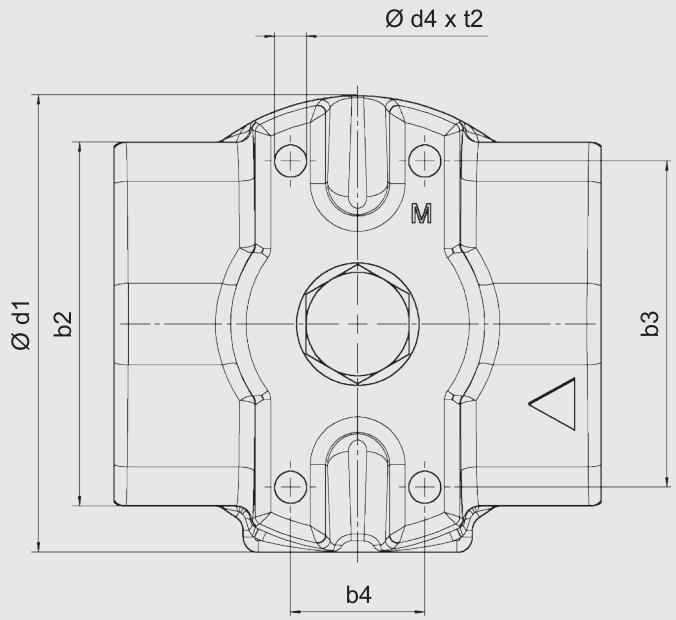

product-676-620

Loj	b1	b2	b3	b4	d1	d2	d3	d4	h1	h2	h3	h4	AF dav	t1	t2	Nyhav incl. keeb	Volume ntawm lub siab chamber
																[kg]	[l]
30	68	38	45	30	69	52	G 1⁄2	M5	130.5	38	6	75	24	14	6	2.3	0.13
60	90	71	56	32	86	68	G 3⁄4	M6	144	40	6	85	27	16	9	4.5	0.2
110	90	71	56	32	86	68	G 3⁄4	M6	213.5	40	6	85	27	16	9	5.4	0.33
160	125	95	85	35	119	95	G 1¼	M10	197	47	6	105	32	20	14	10.2	0.6
240	125	95	85	35	119	95	G 1¼	M10	256	47	6	105	32	20	14	11.7	0.8

Cov txiaj ntsig zoo

Kev tsim vaj tsev hnyav ua kom muaj kev ruaj ntseg hauv kev vibration, poob siab, thiab siab. Lub inline mounting style txuag qhov chaw teeb tsa thiab ua kom yooj yim rau kev teeb tsa cov kav dej. Tus qauv tsim qauv tsim kom muaj kev sib raug zoo nrog cov hydraulic piping systems, txo kev teeb tsa thiab hloov cov nqi.

Cov hlau mesh caij muab cov neeg kho tshuab siab ruaj khov thiab cov yam ntxwv zoo heev. Nws muaj peev xwm tiv taus backflushing, ntxuav ultrasonic, thiab hnyav ntxuav yam tsis tau poob zoo los yog pom efficiency. Qhov no ua rau MDF W series zoo tagnrho rau cov neeg siv nrhiav kev ruaj khov, tus nqi qis-ntawm-tus tswv pom kev daws teeb meem.

Tej kev siv

Lub tshuab lim dej no tau siv dav hauv cov tshuab hydraulic, lubrication systems, gearboxes, compressor lubrication circuits, thiab cov kua dej ua haujlwm. Nws yog tshwj xeeb tshaj yog haum rau tej yam kev mob uas muaj siab particle loads thiab reusable pom yog nyiam.

Ayater muab cov vaj tsev zoo sib hloov tau thiab cov khoom siv lim dej tsis huv stainless hlau uas phim qhov loj me thiab kev ua haujlwm zoo. Peb cov khoom muaj kev ruaj ntseg sealing, ruaj khov tsis kam, thiab kev pab lub neej ntev. Peb muab kev txhawb nqa tag nrho rau kev teeb tsa, kev saib xyuas, thiab tu cov txheej txheem.
